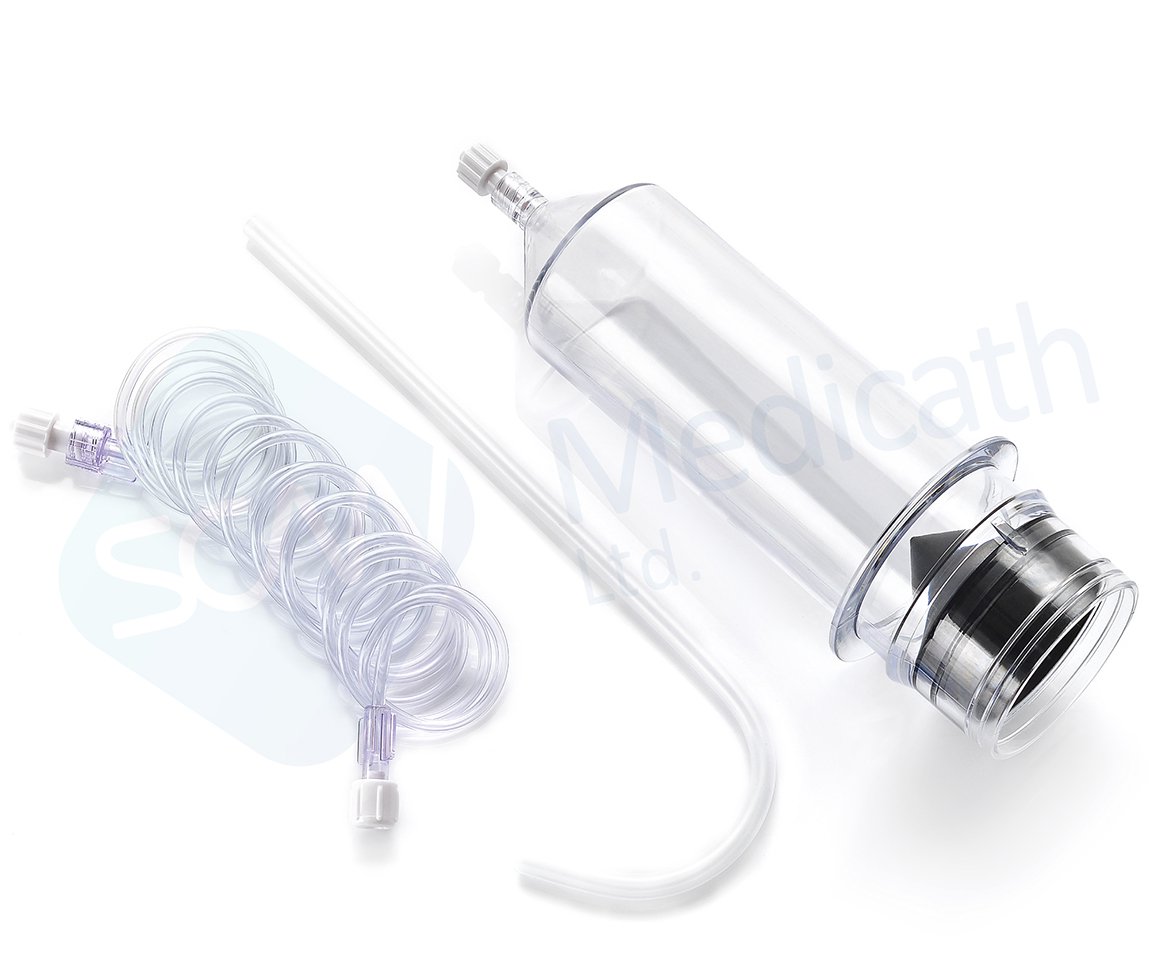

Angiographic Syringes Accessories

  • · The high pressure angiography connecting tubing is used together with Angiographic Syringe for angiography clinically.

Features

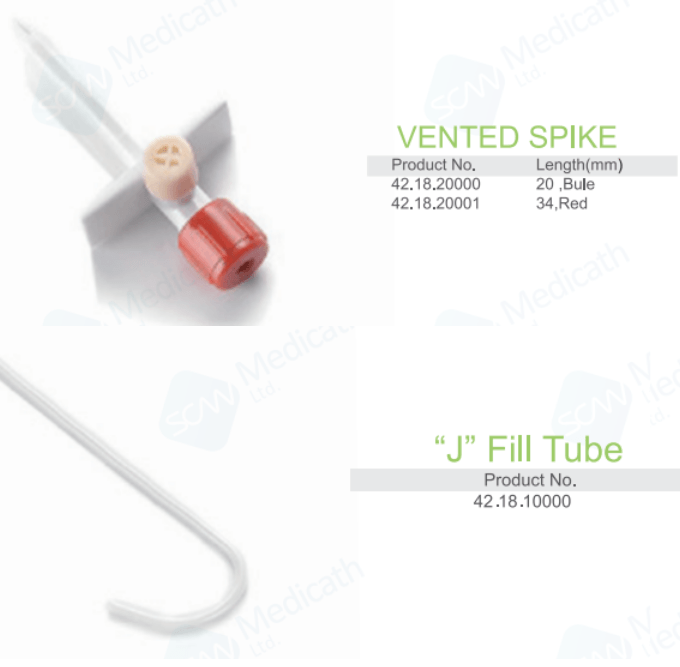

• VENTED SPIKE.
• ''J'' Fill Tube

• Connecting Tubing (300psl)







Product Quick Look

Product at a glance -



Parameter

Product No. Description Length(cm) ID(mm) OD(mm)
42.02.90000 Y tube with two check valves 150 1.8 3.6
42.02.90001 Coiled tube 150 1.6 3
42.02.90002 Y tube with two check valves 250 1.8 3.6
42.02.90003 Y tube with one check valve 150 1.8 3.6
42.02.90004 Y tube with one check valve 250 1.8 3.6

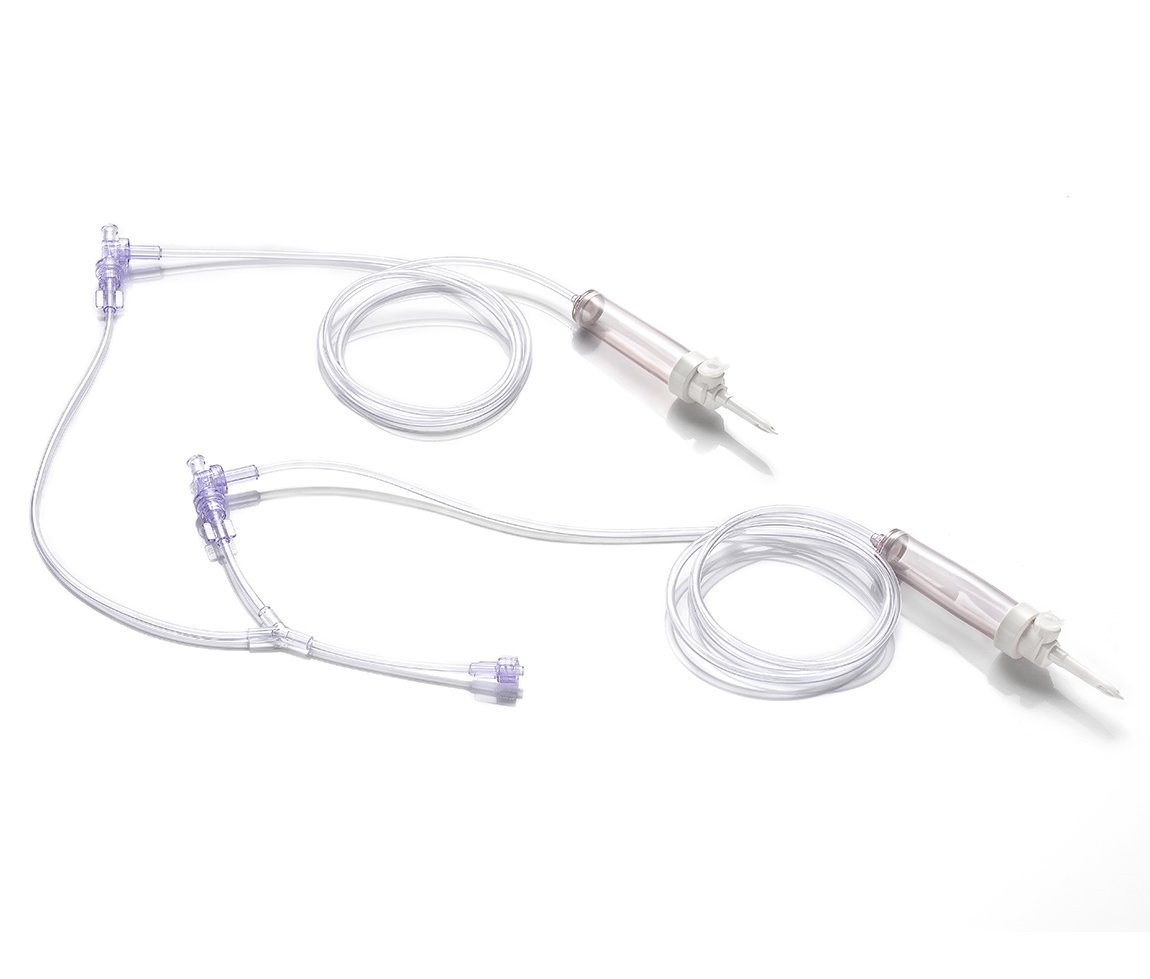

42.02.90005 Double infusion line with two check valves 150 2.8 4
42.02.90006 Straight tube 150 1.6 3
42.02.90007 Straight tube 20 1.6 3
42.02.90008 Straight tube with two male check valves 150 1.8 3.6
42.02.90009 Straight tube with two male check valves 250 1.8 3.6
42.02.90010 Coiled tube 150 1.8 3.6
42.02.90011 Straight tube with one needles adapter and spike 25 1.8 3.6
42.02.90012 Y tube with two check valves 15 1.8 3.6
42.02.90013 Coiled tube 50 1.6 3
42.02.90014 Coiled tube 100 1.6 3
42.02.90015 Straight tube with one check valve 12 1.8 3.6
42.02.90016 T tube with one coild tube 150cm and 100cm spike tube 150 1.8 3.6
