PTCA Balloon Catheter

  • · PTCA Balloon Dilatation Catheters are indicated for balloon dilatation of the stenotic portion of a coronary artery or bypass graft stenosis for the purpose of improving myocardial perfusion.

Features

• The main use of PTCA balloon catheter is through minimal invasive surgery (PTCA) to expand the patient's stenosis of coronary arterie lesion, improve the myocardial blood flow. It can be also used to transport the release Stent to the coronary artery stenosis lesions.

• RX PTFE Coated Hypotube Design

• Excellent Hydrophilic Coating

• Enhanced Pushabilty & Lesion Pressure

• Enhanced Average Burst Pressure

• 0.016"Tip Profile

• Atraumatic Tapered Soft Tip

------------------------

Details:

(1) Excellent Passability

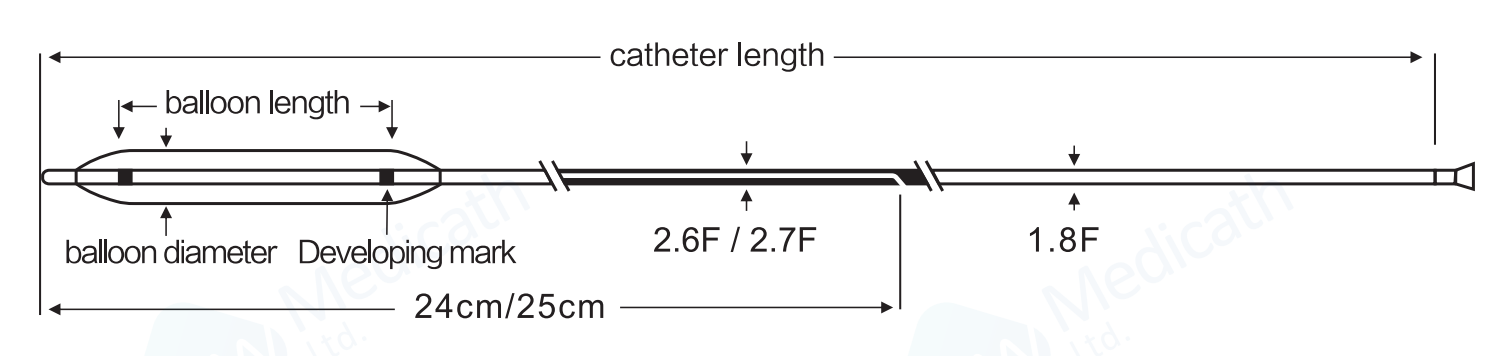

● Small outer diameter of tip: 0.016" outer diameter of tip, which avoids fish mouth phenomenon to the greatest extent while ensuring passability, and makes it easier to pass through highly stenotic lesions.

● Smaller outer diameter of refolding: The unique tri-folding technology enables the balloon to automatically roll back after deflation or suctioning negative pressure to reduce the outer diameter of the refolded balloon, which enhances the ability of the balloon to pass through the lesion again, and It also has an ultra-pressure resistance of 20ATM, allowing you to easily deal with multiple vascular lesions.

●Special Mark design: special damascene process, effectively reducing the outer diameter.

(2) Outstanding Pushability
● Excellent rod body force transmission design, strong rod push, easier to pass through complex lesions such as tortuous blood vessels or severe calcification.
● The design of transitional support wire provides good pushing force and is easy to reach the lesion site.

● The hydrophilic coating effectively reduces the pushing resistance and vascular damage, and enhances its passability and pushability. It can be pushed smoothly even in very tortuous distal blood vessels. The uncoated part can be selected when the balloon is opened. Prevent the balloon from slipping in the lesion or in the stent.

(3) Better Tracking
●Softer balloon and catheter material make the balloon conform to the shape of the blood vessel, and provide better tracking.
●Short shoulder design at both ends of the balloon helps to reduce excess expansion at both ends of the balloon, and focuses on expanding lesions without damaging normal blood vessels.

Product Quick Look

Product at a glance-



Parameter

NON-COMPLIANT

Balloon Lengths(mm) NP:12ATM, RBP:20ATM

Diameter (mm)

6 9 12 15 20 25 30
1.75

42.13.11008

42.13.11009


2.00

42.13.02001

42.13.02002

42.13.02012

42.13.02032

42.13.02055

42.13.02056

42.13.02074

2.25

42.13.12014

42.13.12015

42.13.12016

42.13.12017

42.13.12018

42.13.12019

42.13.12020

2.5

42.13.03001

42.13.03002

42.13.03011

42.13.03032

42.13.03055

42.13.03056

42.13.03075

2.75

42.13.04001

42.13.04002

42.13.04013

42.13.04011

42.13.04055

42.13.04056

42.13.04075

3

42.13.05001

42.13.05002

42.13.05012

42.13.05031

42.13.05055

42.13.05056

42.13.05075

3.25

42.13.13015

42.13.13016

42.13.13017

42.13.13018

42.13.13019

42.13.13020

42.13.13021

3.5

42.13.06001

42.13.06002

42.13.06011

42.13.06031

42.13.06055

42.13.06056

42.13.06075

3.75

42.13.14008

42.13.14009


4

42.13.07001

42.13.07002

42.13.07011

42.13.07031

42.13.07051

42.13.07056

42.13.07075

4.5

42.13.10015

42.13.10001

42.13.10017

42.13.10018

42.13.10019

42.13.10020


5

42.13.15004

42.13.15005

42.13.15006

42.13.15007

42.13.15008





SEMI-COMPLIANT

Balloon Lengths(mm) NP:8ATM, RBP:16ATM
Diameter
(mm)
10 12 15 18 20 22 24 25 27 30 32 35   40 42
1.00 42.13.08002 42.13.08003 42.13.08004   42.13.08005         42.13.08006     ( CTO )
1.25 42.13.09002   42.13.09001   42.13.09003               ( CTO )
1.50 42.13.01010 42.13.01011 42.13.01030 42.13.01031 42.13.01050 42.13.01051
1.75 42.13.11001 42.13.11002 42.13.11003   42.13.11004   42.13.11005 42.13.11006   42.13.11007
2.00 42.13.02010 42.13.02011 42.13.02030 42.13.02031 42.13.02050 42.13.02051 42.13.02052 42.13.02053 42.13.02054 42.13.02070   42.13.02071   42.13.03072 42.13.02073
2.25 42.13.12001 42.13.12002 42.13.12003 42.13.12004 42.13.12005 42.13.12006 42.13.12007 42.13.12008 42.13.12009 42.13.12010   42.13.12011   42.13.12012 42.13.12013
2.50 42.13.03010 42.13.03012 42.13.03030 42.13.03031 42.13.03050 42.13.03051 42.13.03052 42.13.03053 42.13.03054 42.13.03070 42.13.03071 42.13.03072   42.13.03073 42.13.03074
2.75 42.13.04010 42.13.04012 42.13.04030 42.13.04031 42.13.04050 42.13.04051 42.13.04052 42.13.04053 42.13.04054 42.13.04070 42.13.04071 42.13.04072   42.13.04073 42.13.04074
3.00 42.13.05010 42.13.05011 42.13.05030 42.13.05032 42.13.05050 42.13.05051 42.13.05052 42.13.05053 42.13.05054 42.13.05070 42.13.05071 42.13.05072   42.13.05073 42.13.05074
3.25 42.13.13001 42.13.13002 42.13.13003 42.13.13004 42.13.13005 42.13.13006 42.13.13007 42.13.13008 42.13.13009 42.13.13010 42.13.13011 42.13.13012   42.13.13013 42.13.13014
3.50 42.13.06010 42.13.06012 42.13.06030 42.13.06032 42.13.06050 42.13.06051 42.13.06052 42.13.06053 42.13.06054 42.13.06070 42.13.06071 42.13.06072   42.13.06073 42.13.06074
3.75 42.13.14001 42.13.14002 42.13.14003   42.13.14004   42.13.14005 42.13.14006   42.13.14007
4.00 42.13.07010 42.13.07012 42.13.07030 42.13.07032 42.13.07050 42.13.07052 42.13.07053 42.13.07054 42.13.07055 42.13.07070 42.13.07071 42.13.07072   42.13.07073 42.13.07074
4.50 42.13.10002   42.13.10003 42.13.10004 42.13.10005 42.13.10006 42.13.10007 42.13.10008 42.13.10009 42.13.10010 42.13.10011 42.13.10012   42.13.10013 42.13.10014
5.00 42.13.15001   42.13.15002   42.13.15003
6.00 42.13.16001   42.13.16002   42.13.16003
