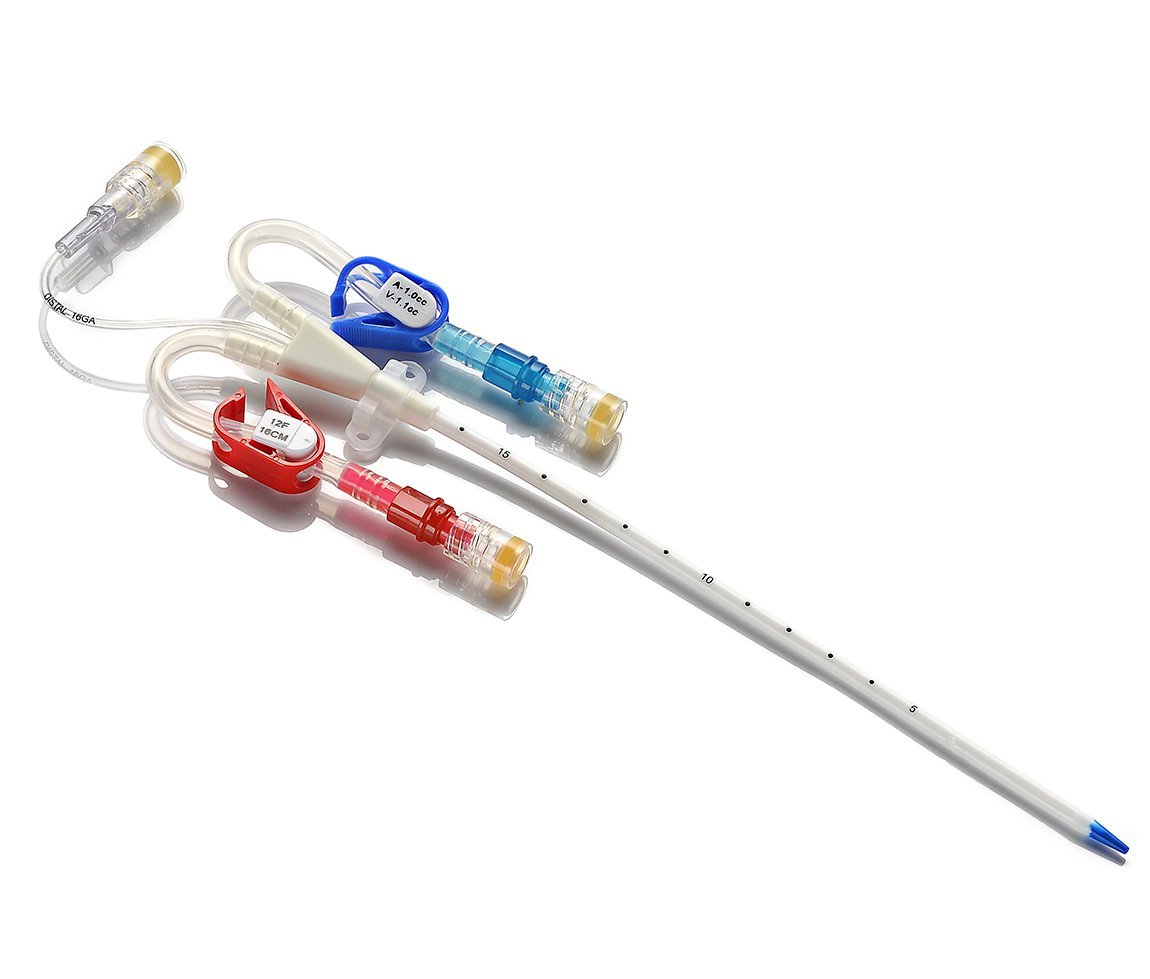

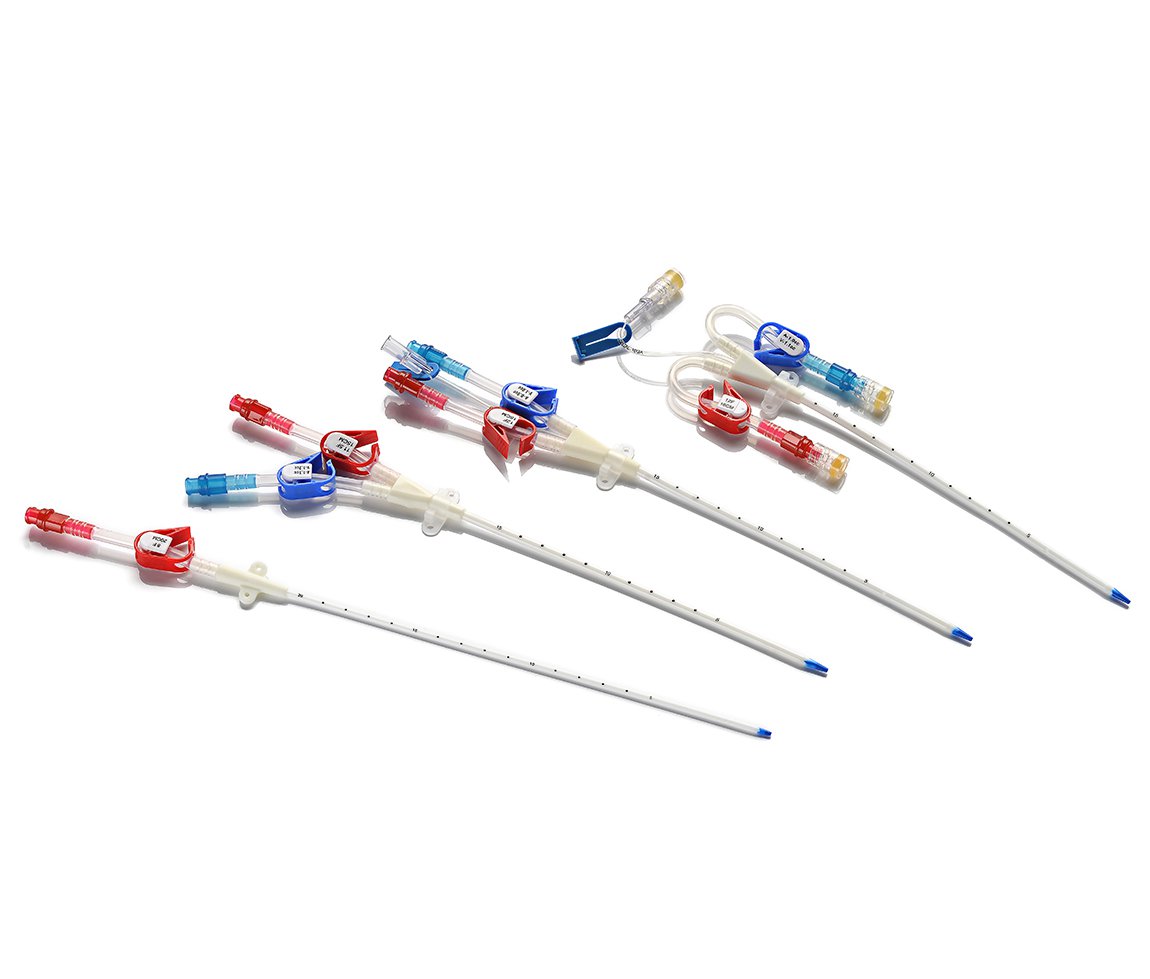

Hemodialysis catheterization kits

  • · Hemodialysis catheterization kits are providing temporary vascular access for hemodialysis until a permanent access is available or until another type of dialysis therapy is substituted. Hemodialysis catheters are usually placed in deep veins such as the neck (jugular vein) and chest (subclavian vein) through the Seldinger technique.

Features

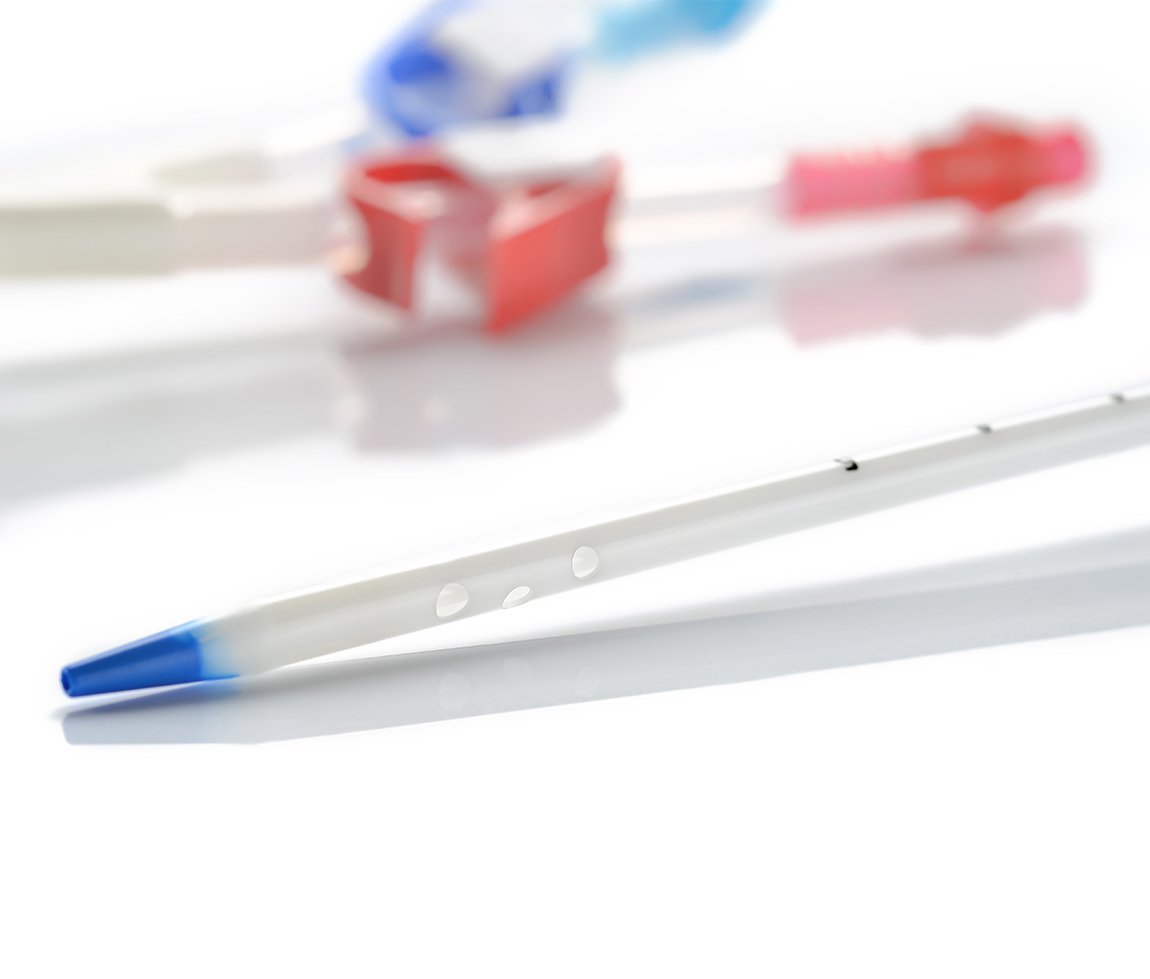

• Soft-tip designed to reduce vessel trauma during insertion
• Medical grade material ensures the highest level of safety
• Catheter softens at body temperature and provides excellent performance of insertion
• Features radiopaque materials that enable quick visualization and correct placement of the catheter tip
• Optional kink-resistant guidewire that increases clinician confidence
*  We can supply kink resistance nitinol guide wire to increase clinician confidence

Contents

Catheter, Dilator, Guidewire, Clamp, Injection cap, Syringe, Introducer needle, Scalpel

Parameter

SINGLE LUMEN
Product No. Size(Fr.) Length(cm)   Product No. Size(Fr.) Length(cm)
41.02.10109 8.0 10 41.02.10108 8.0 20
41.02.10106 8.0 13 41.02.10110 8.0 30
41.02.10107 8.0 16
DOUBLE LUMEN                                                                                                   Colored connector
Product No. Size(Fr.) Extension Line Length(cm)   Product No. Size(Fr.) Extension Line Length(cm)
41.02.20205 8 Straight 13 41.02.20110 11.5 Straight 16
41.02.20206 8 Curved 13 41.02.20112 11.5 Curved 16
41.02.20207 8 Straight 15 41.02.20114 11.5 Straight 20
41.02.20208 8 Curved 15 41.02.20116 11.5 Curved 20
41.02.20103 11.5 Straight 13 41.02.20407 11.5 Straight 30
41.02.20104 11.5 Curved 13 41.02.20408  11.5 Curved 30
41.02.20106 11.5 Straight 15 41.02.20302 12.0 Straight  13
41.02.20108 11.5 Curved 15 41.02.20304 12.0 Curved  13
41.02.20306 12.0 Straight  15 41.02.20308  12.0 Curved 15
41.02.20310 12.0 Straight 16 41.02.20312 12.0  Curved 16
41.02.20314 12.0 Straight  20 41.02.20316 12.0 Curved  20
41.02.20319 12.0  Straight 30 41.02.20320 12.0 Curved 30
TRIPLE LUMEN                                                                                                           Colored connector
Product No. Size(Fr.) Extension Line Length(cm)   Product No. Size(Fr.) Extension Line Length(cm)
41.02.31002 11.5 Straight 13 41.02.31007 11.5 Curved 13
41.02.31004 11.5 Straight 16 41.02.31009 11.5 Curved 16
41.02.31006 11.5 Straight 20 41.02.31010 11.5 Curved 20
41.02.31011 11.5 Straight 30 41.02.31012 11.5 Curved 30
41.02.32002 12.0 Straight 13 41.02.32012 12.0 Curved 13
41.02.32004 12.0 Straight 16 41.02.32009 12.0 Curved 16
41.02.32006 12.0 Straight 20 41.02.32011 12.0 Curved 20
41.02.32013 12.0 Straight 30 41.02.32014  12.0 Curved 30
