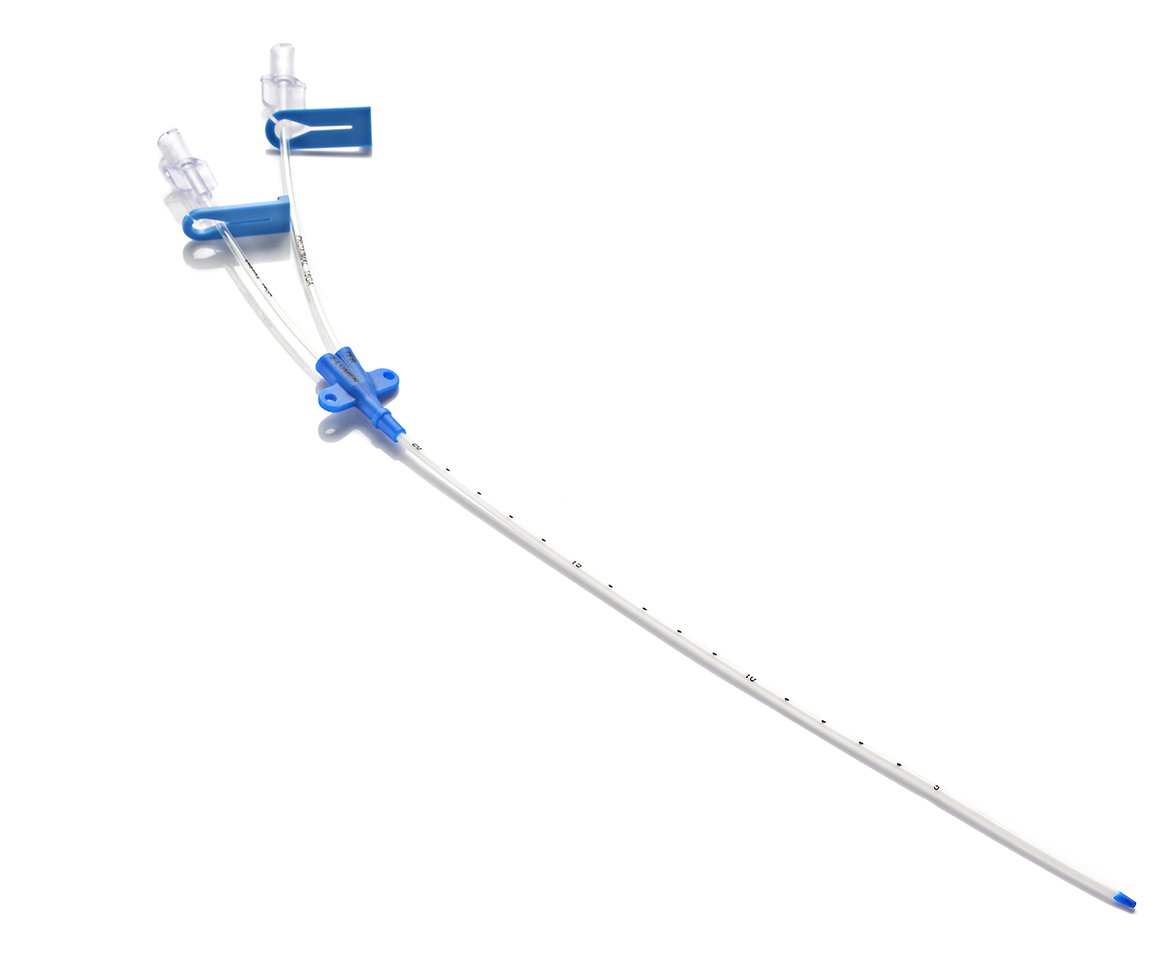

Central Venous Catheter Kits

  • Central Venous Catheter Kits are designed for the administration of I.V. fluids, blood products, drugs, parenteral nutrition solutions, blood withdrawal, as well as the measurement of CVP.

Features

● SCW MEDICATH LTD. is the first manufacturer of central venous catheters in China. CVC is one of our most mature products. In more than 20 years of development, SCW has gathered a large number of excellent industrial workers with the best processing technology of this product. Therefore, our burr-free catheter has the smoothest inner wall among similar products in the Chinese market, reducing risks of blockage or thrombosis caused by floccules in the blood. With excellent product quality, the market share of this product is among the best in the industry. For example, it is used in major medical schools and top tertiary hospitals in China.

● Available in multiple cavities and small specifications to meet different clinical needs.

● Soft-tip designed to reduce vessel trauma during insertion. The material of the catheter tube body is specially made and has good biocompatibility. It can be automatically softened when left in the human body, effectively protecting the inner wall of the blood vessel.

● Medical grade material ensures the highest level of safety. The surface of the tube body is super-smoothed, which reduces the resistance of tube placement and effectively prevents platelet adhesion and thrombosis.

● Features radiopaque materials that enable quick visualization and correct placement of the catheter tip.

Contents

Catheter            Dilator                Guidewire

Clamp               Injection cap       Syringe

Introducer needle                        Scalpel

Product Quick Look

Product at a glance ( 00:48 ) -



Parameter

Single Lumen
Product No. Size(Ga) Length(cm)   Product No. Size(Ga) Length(cm)
41.01.10103 14.0 15 41.01.10101 14.0 20
41.01.10102 14.0 30 41.01.10201 16.0 15
41.01.10202 16.0 20 41.01.10203 16.0 30
41.01.10204 16.0 35 41.01.10205 16.0 45
41.01.10206 16.0 60 41.01.10303 18.0 13
41.01.10301 18.0 15 41.01.10302 18.0 20
41.01.10401 20.0 13 41.01.10402 20.0 15
41.01.10403 20.0 20
Double Lumen
Product No. Size(Fr)  Length(cm)   Product No. Size(Fr)  Length(cm)
41.01.20101 4.0 8 41.01.20102 4.0 13
41.01.20103 4.0 20 41.01.20201 5.0 8
41.01.20202 5.0 13 41.01.20203 5.0 20
41.01.20301 7.0 15 41.01.20302 7.0 20
41.01.20303 7.0 30 41.01.20401 8.0 20
41.01.20402 8.0 30
Triple Lumen
Product No. Size(Fr)  Length(cm)   Product No. Size(Fr)  Length(cm)
41.01.30101 5.5 8 41.01.30102 5.5 13
41.01.30201 7.0 15 41.01.30202 7.0 20
41.01.30203 7.0 30 41.01.30301 8.5 15
41.01.30302 8.5 20 41.01.30303 8.5 30
41.01.30103 5.5 15
Quad Lumen
Product No. Size(Fr)  Length(cm)   Product No. Size(Fr)  Length(cm)
41.01.40101 8.5 15  41.01.40102 8.5  20
41.01.40103 8.5 30
