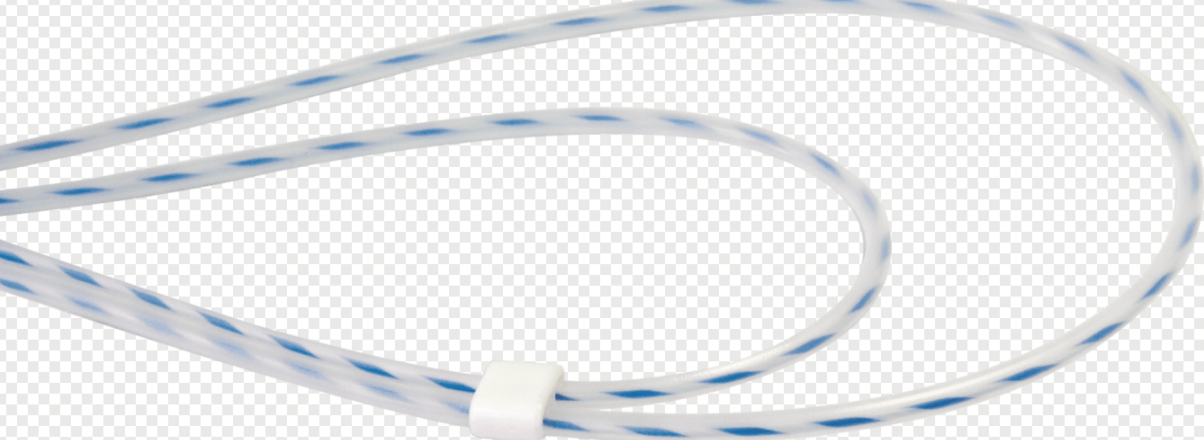

● Opaque rays tip, ensure the good visible under x-ray
● Stripe is helpful to judymet direction and distance
● Superplastic nitinol wire core to prevent the guidewrie kink
● Jacket PTFE, blue and white, yellow and black stripe
● Core meterial: Nitinol
● Dimentions:
OD Range | 0.025'' - 0.035'' |
Length Range | 150cm - 450cm |
J Radius | Straight |
Product No. | O.D. (in) | "Working Length(cm)" | Model | With/Without | Color |
45.06.22001 | 0.025 | 270 | 0.025in x 270cm | Without spring coil | blue and white |
45.06.22002 | 0.025 | 450 | 0.025in x 450cm | Without spring coil | blue and white |
45.06.31001 | 0.032 | 150 | 0.032in x 150cm | With spring coil | blue and white |
45.06.31002 | 0.032 | 260 | 0.032in x 260cm | With spring coil | blue and white |
45.06.41001 | 0.032 | 420 | 0.032in x 420cm | With spring coil | blue and white |
45.06.41002 | 0.035 | 190 | 0.035in x 190cm | With spring coil | blue and white |
45.06.41003 | 0.035 | 270 | 0.035in x 270cm | With spring coil | blue and white |
45.06.41004 | 0.035 | 450 | 0.035in x 450cm | With spring coil | blue and white |
45.06.22003 | 0.025 | 270 | 0.025in x 270cm | Without spring coil | yellow and black |
45.06.22004 | 0.025 | 450 | 0.025in x 450cm | Without spring coil | yellow and black |
45.06.31004 | 0.032 | 150 | 0.032in x 150cm | With spring coil | yellow and black |
45.06.31005 | 0.032 | 260 | 0.032in x 260cm | With spring coil | yellow and black |
45.06.31006 | 0.032 | 420 | 0.032in x 420cm | With spring coil | yellow and black |
45.06.41005 | 0.035 | 190 | 0.035in x 190cm | With spring coil | yellow and black |
45.06.41006 | 0.035 | 270 | 0.035in x 270cm | With spring coil | yellow and black |
45.06.41007 | 0.035 | 450 | 0.035in x 450cm | With spring coil | yellow and black |
