PTFE Coating Guide Wires

  • · It is also called Angiographic Guidewire. The guide wire is intended for percutaneous entry of peripheral vessels. It can be used to selectively introduce and position catheters and other interventional devices within the peripheral vasculature. The device should be used only by physicians trained in percutaneous, intravascular techniques and procedures.

Features

• After testing and comparison, the smoothness of our PTFE coating ranks first in the world;

• Used in radiodiagnosis and interventional procedures to introduce catheters or other instruments;

• Coating: PTFE

• Core meterial: Stainless Steel

• There are a variety of diameters and lengths for options

• Tip J-bend design, easy to maneuver

• We use advanced coated technology, which can better avoid coating falling off into the patient's blood vessels, reduce surgical side effects, and reduce medical accidents compared to peers using traditional technology;

• The special PTFE coating technology makes the surface of the guide wire smoother and has good passing performance, which is convenient for doctors to operate;

• The guide wire is well visualized under X-ray, and the direction and positioning of the guide wire can be accurately judged.

Parameter

Dimentions
OD Range 0.021"-0.038"
Length Range 50cm-300cm
J Radius 1.5mm-15mm

Pre-Coating

Product No. Length
(cm)
Tip form
0.025" 0.032" 0.035" 0.038"
42.01.10000 42.01.10004 42.01.10008 42.01.10012 150 Straight
42.01.10001 42.01.10005 42.01.10009 42.01.10014 150 J
42.01.10246 42.01.10054 42.01.10056 42.01.10060 180 Straight
42.01.10247 42.01.10055 42.01.10035 42.01.10062 180 J
42.01.10002 42.01.10006 42.01.10010 42.01.10015 260 Straight
42.01.10003 42.01.10007 42.01.10011 42.01.10016 260 J

CE certification

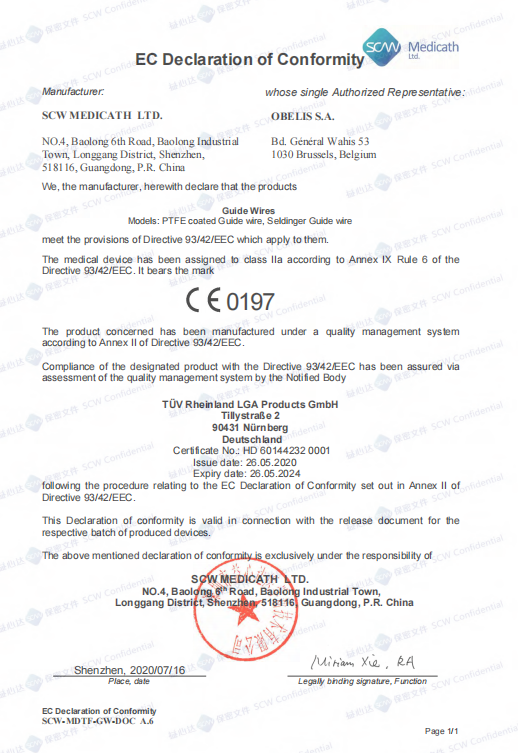

This is a CE certified product. Here is the picture for your reference:



Product recommendation
