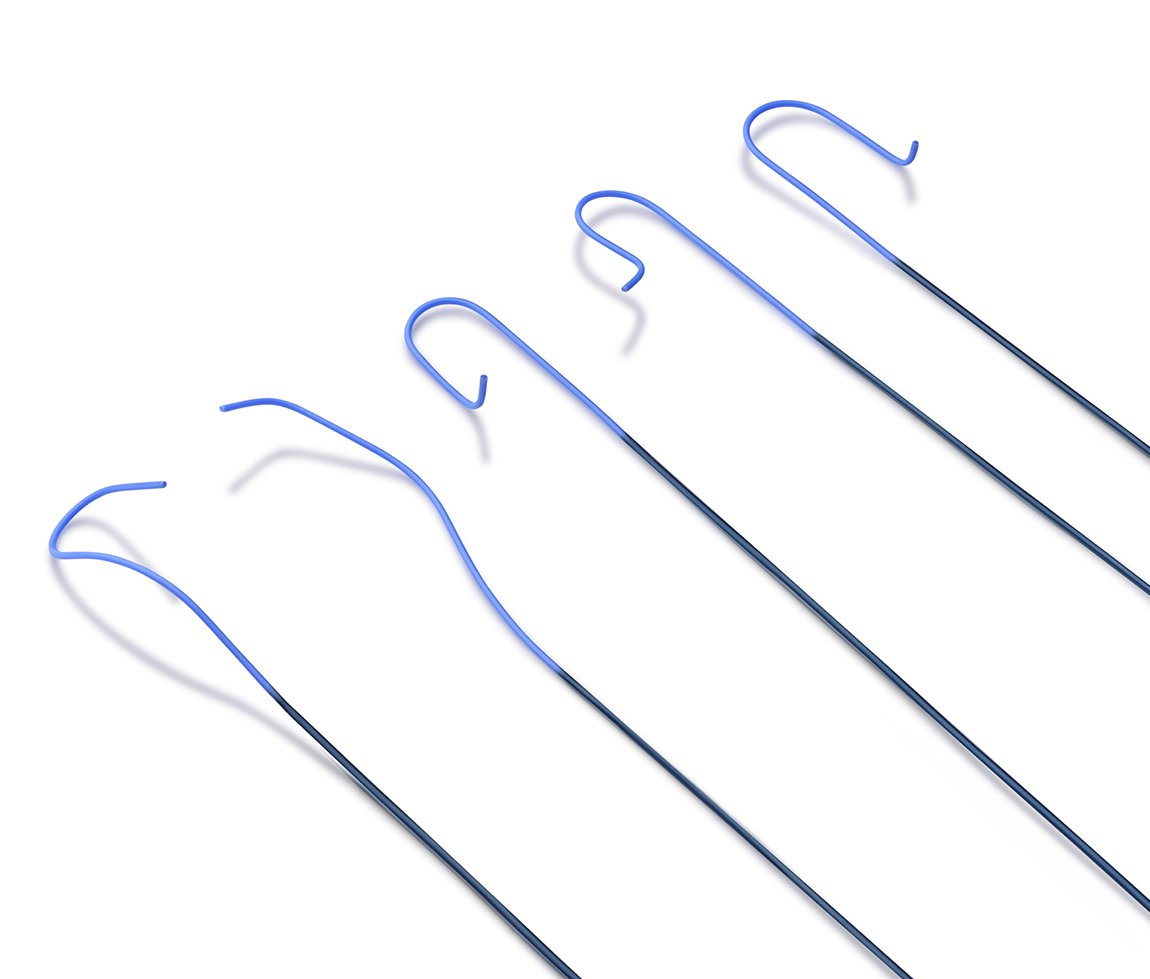

Radiology Angiographic Catheter

· The Peripheral Angiographic Catheter is designed to provide a pathway to be used for delivering contrast media to selected sites in the vascular system during an angiographic procedure. The device is for single use only.

INQUIRY

Features

Parameter

Features

• For various peripheral angiography

• Large inner diameter for high flow rate of contrast media

• Flexible material have excellent support and shape memory

• Braided catheter construction allows for good torqueability and excellent kink resistant capacity

• Soft tip will protect vessel from damage

• The woven mesh is designed to withstand pressure, and the soft head end is designed to prevent damage to blood vessels

• The specifications and models are complete, which is convenient for doctors to choose

Parameter

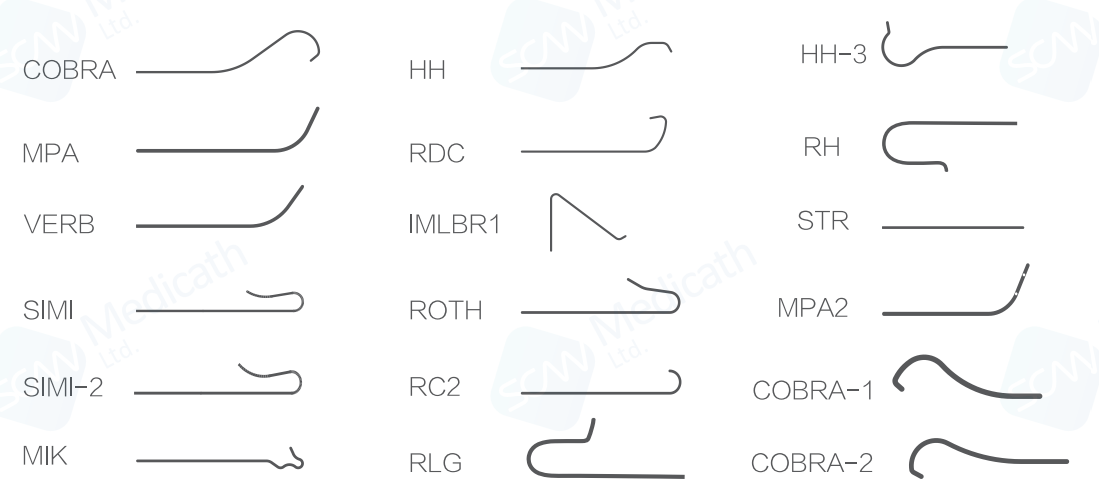

Product No.	Fr.	Configuration	Length(cm)	Product No.	Fr.	Configuration	Length(cm)	Product No.	Fr.	Configuration	Length(cm)
42.08.21425	4F	COBRA1	100	42.08.21426	5F	COBRA1	100	42.08.21427	6F	COBRA1	100
42.08.21428	4F	COBRA2	100	42.08.21292	5F	COBRA2	100	42.08.21429	6F	COBRA2	100
42.08.21430	4F	COBRA3	100	42.08.21431	5F	COBRA3	100	42.08.21432	6F	COBRA3	100
42.08.21433	4F	SIM1	100	42.08.21294	5F	SIM1	100	42.08.21434	6F	SIM1	100
42.08.21435	4F	SIM2	100	42.08.21295	5F	SIM2	100	42.08.21436	6F	SIM2	100
42.08.21437	4F	SIM3	100	42.08.21438	5F	SIM3	100	42.08.21439	6F	SIM3	100
42.08.21296	4F	MPA1	100	42.08.21297	5F	MPA1	100	42.08.21420	6F	MPA1	100
42.08.21447	4F	MPA1	110	42.08.21421	5F	MPA1	110	42.08.21448	6F	MPA1	110
42.08.21440	4F	MPA2	100	42.08.21423	5F	MPA2	100	42.08.21424	6F	MPA2	100
42.08.21449	4F	MPA2	110	42.08.21450	5F	MPA2	110	42.08.21422	6F	MPA2	110
42.08.21441	4F	MPB1	100	42.08.21442	5F	MPB1	100	42.08.21443	6F	MPB1	100
42.08.21444	4F	MPB2	100	42.08.21445	5F	MPB2	100	42.08.21446	6F	MPB2	100
42.08.21451	4F	VERB	100	42.08.21452	5F	VERB	100	42.08.21453	6F	VERB	100
42.08.21460	4F	STR	90	42.08.21461	5F	STR	90	42.08.21462	6F	STR	90
42.08.21472	4F	IMLBR1	100	42.08.21473	5F	IMLBR1	100	42.08.21474	6F	IMLBR1	100
42.08.21454	4F	MIK	80	42.08.21455	5F	MIK	80	42.08.21456	6F	MIK	80
42.08.21457	4F	MIK	100	42.08.21458	5F	MIK	100	42.08.21459	6F	MIK	100
42.08.21463	4F	HH1	100	42.08.21464	5F	HH1	100	42.08.21465	6F	HH1	100
42.08.21466	4F	HH2	100	42.08.21467	5F	HH2	100	42.08.21468	6F	HH2	100
42.08.21475	4F	RC2	80	42.08.21476	5F	RC2	80	42.08.21477	6F	RC2	80
42.08.21478	4F	RC2	100	42.08.21479	5F	RC2	100	42.08.21480	6F	RC2	100
42.08.20012	4F	RH	80	42.08.20013	5F	RH	80	42.08.20014	6F	RH	80
42.08.20015	4F	YAS	80	42.08.20016	5F	YAS	80	42.08.20017	6F	YAS	80
42.08.20018	4F	RS	80	42.08.20019	5F	RS	80	42.08.20020	6F	RS	80
42.08.20021	4F	RLG	80	42.08.20022	5F	RLG	80	42.08.20023	6F	RLG	80
