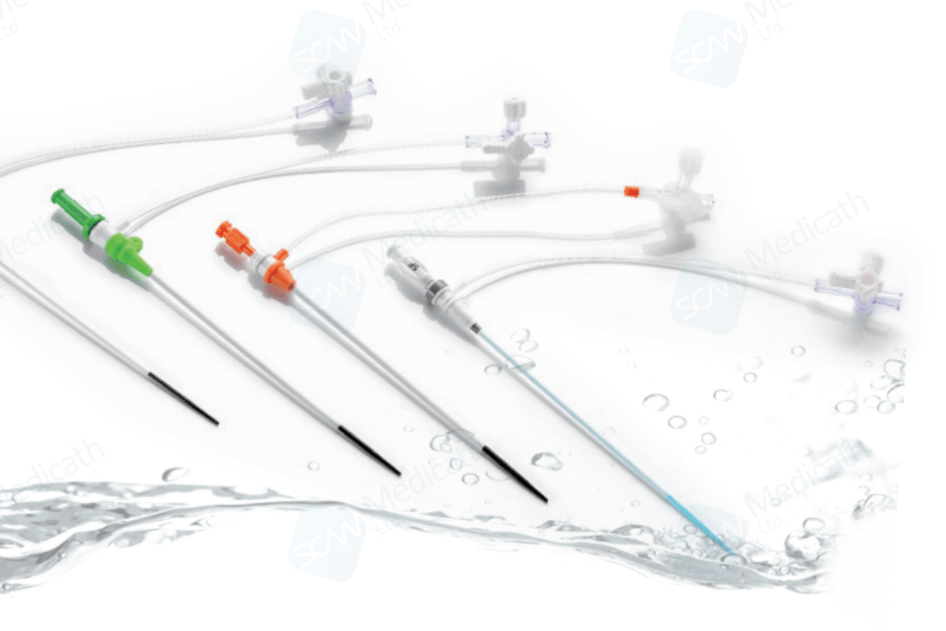

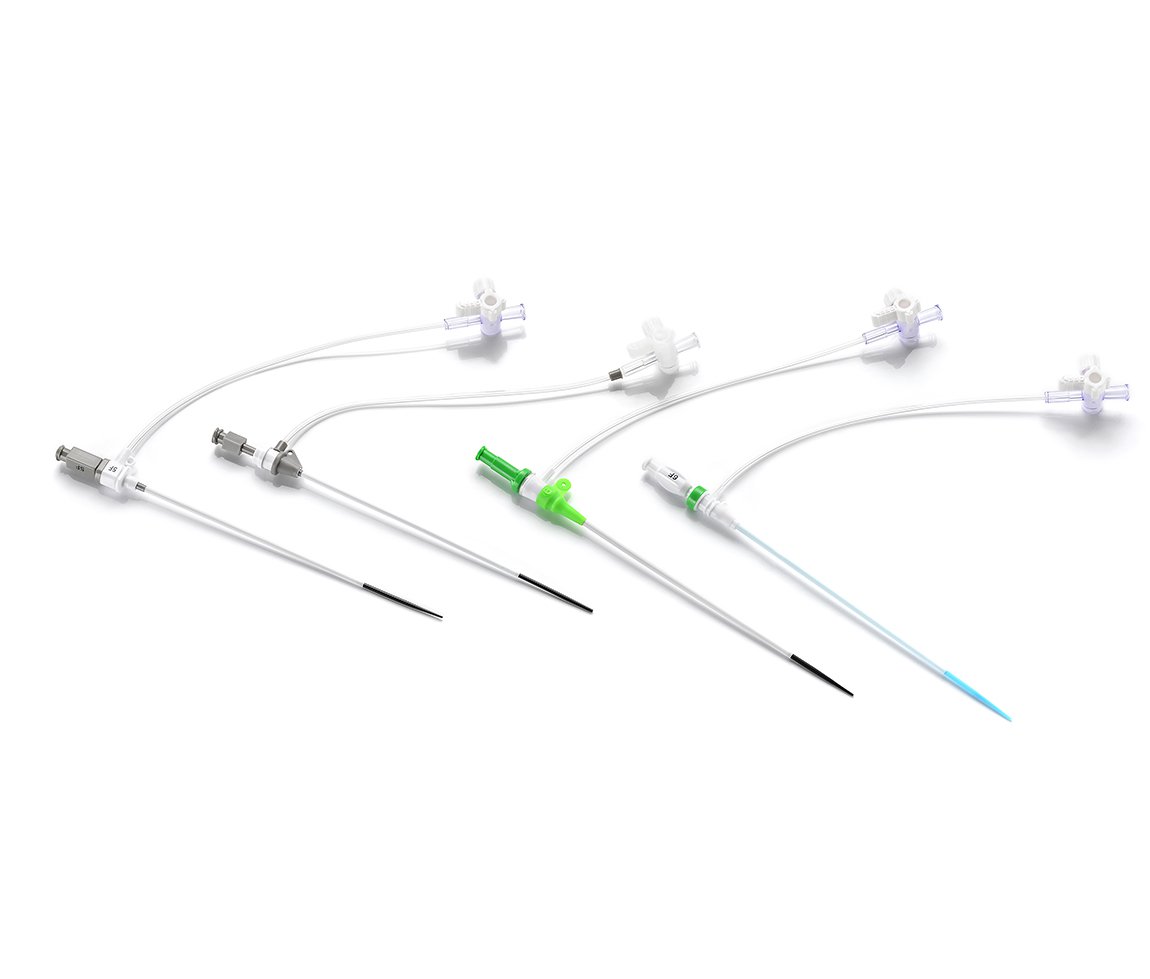

Introducer Sets

  • · The introducer set is intended for percutaneous introduction of guide wire or catheter into the vascular system through introducer needle. The introducer set should be used only by physicians trained in percutaneous, intravascular techniques and procedures.

Features

• Comparing with other manufacturers, the special cutting method design of the valve ensures less blood leak in the case of continuous pumping;

• The front part has high hardness and long taper, making it enter the subcutaneous more smoothly, and even in special cases, the step of skin breaking can be eliminated, reducing the operation time;

• Hydrophilic coating sheath entering skin tissues greatly reduces the possibility of transradial muscle tension in the patient, thereby avoiding prolonged surgery;

• Smooth transition between the dilator and sheath;

• Small OD and large lD minirmizes the size ( compromising ease of device passage );

• Seamless guide wire to dilator and dlator to reduce the risks of gaps and arterial damage;

* We can supply kink resistance nitinol guide wire to increase clinician confidence.

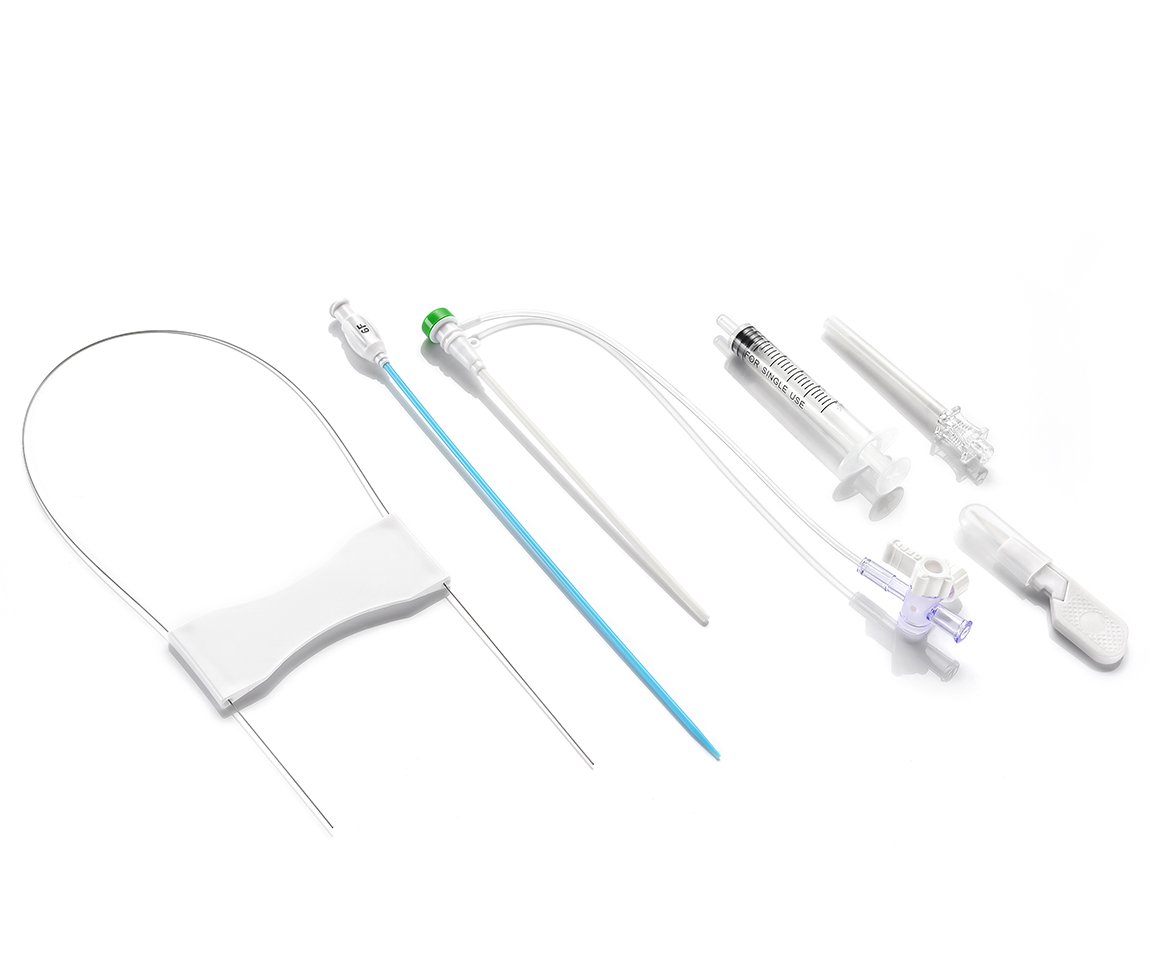

Contents

Femoral Introducer Shealth+ dilator

Syringe

Guide Wire

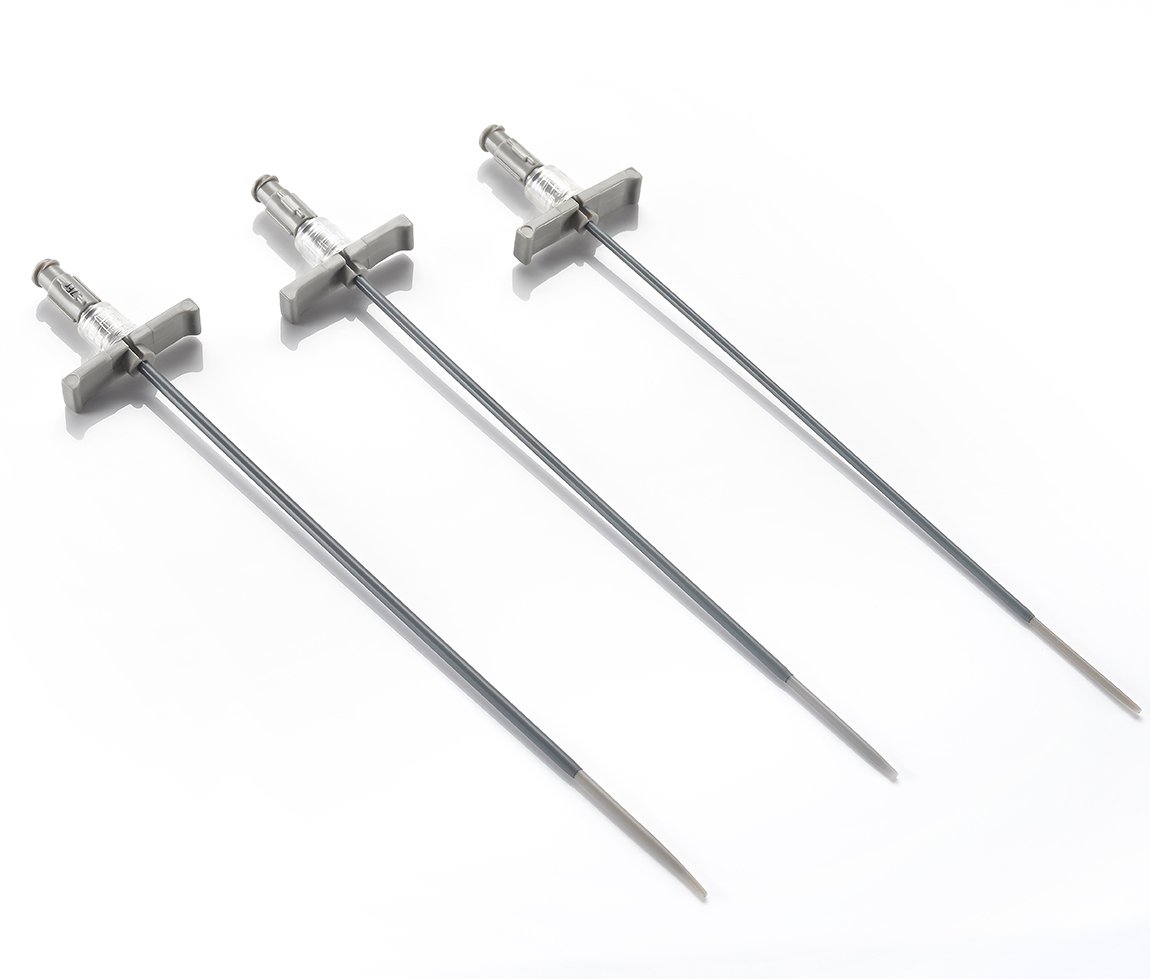

Introducer Needle

Scapel

Product Quick Look

Product at a glance -





Parameter

TWIST TYPE-Med
Product No. Size(Fr.) Length(cm) Guidewire Introducer Needle
42.09.10000 4 9 0.021"*45cm J 20G*3.8cm
42.09.10001 5 11 0.038"*45cm J 18G*6.5cm
42.09.10002 6 11 0.038"*45cm J 18G*6.5cm
42.09.10003 7 11 0.038"*45cm J 18G*6.5cm
42.09.10004 8 11 0.038"*45cm J 18G*6.5cm
42.09.10005 9 11 0.038"*45cm J 18G*6.5cm
42.09.10006 10 11 0.038"*45cm J 18G*6.5cm
42.09.10007 4 19 0.021"*60cm J 20G*3.8cm
42.09.10008 5 23 0.038"*60cm J 18G*6.5cm
42.09.10009 6 23 0.038"*60cm J  18G*6.5cm
42.09.10010 7 23 0.038"*60cm J 18G*6.5cm
42.09.10011 8 23 0.038"*60cm J 18G*6.5cm
42.09.10012 9 23 0.038"*60cm J 18G*6.5cm
42.09.10013 10 23 0.038"*60cm J 18G*6.5cm



CLICK TYPE-Ter
Product No. Size(Fr.) Length(cm) Guidewire Introducer Needle
42.09.20000 4 9 0.021"*45cm J 20G X 3.8 cm
42.09.20001 5 11 0.038"*45cm J 18G*6.5cm
42.09.20002 6 11 0.038"*45cm J 18G*6.5cm
42.09.20003 7 11 0.038"*45cm J 18G*6.5cm
42.09.20004 8 11 0.038"*45cm J 18G*6.5cm
42.09.20005 4 19 0.021"*60cm J 20G*3.8cm
42.09.20006 5 23 0.038"*60cm J 18G*6.5cm
42.09.20007 6 23 0.038"*60cm J 18G*6.5cm
42.09.20008 7 23 0.038"*60cm J 18G*6.5cm
42.09.20009 8 23 0.038"*60cm J 18G*6.5cm



CLICK TYPE-Coo
Product No. Size(Fr.) Length(cm) Guidewire Introducer Needle
42.09.30000 4 9 0.021"*45cm J 20G X 3.8 cm
42.09.30001 5 11 0.038"*45cm J 18G*6.5cm
42.09.30002 6 11 0.038"*45cm J 18G*6.5cm
42.09.30003 7 11 0.038"*45cm J 18G*6.5cm
42.09.30004 4 19 0.021"*60cm J 20G*3.8cm
42.09.30005 5 23 0.038"*60cm J 18G*6.5cm
42.09.30006 6 23 0.038"*60cm J 18G*6.5cm
42.09.30007 7 23 0.038"*60cm J 18G*6.5cm

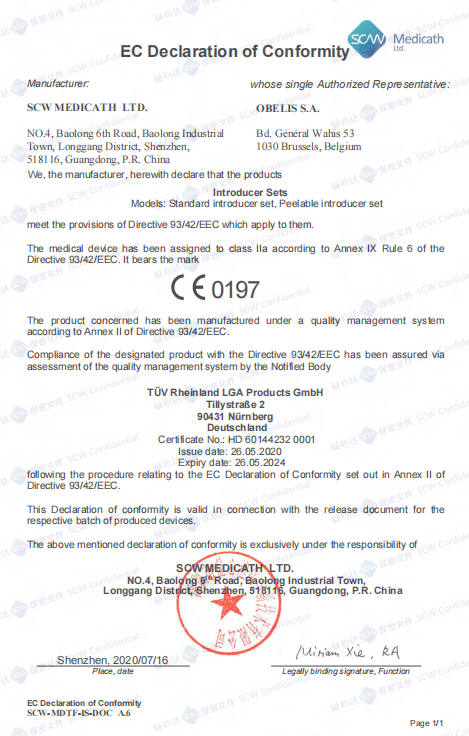

CE Certification

This is a CE certified product. Here is the picture for your reference:
