• Perform diagnostic and interventional procedures without upsizing to a larger sheath

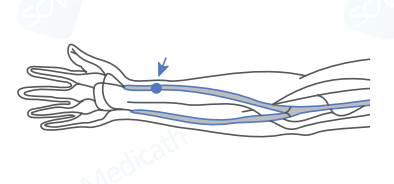

• Optimal radial access, especially in women with smaller radial arteries
• Less penetration resistance than conventional sheaths
• Perform diagnostic and interventional procedures without upsizing to a larger sheath
• Optimal radial access, especially in women with smaller radial arteries
• Less penetration resistance than conventional sheaths

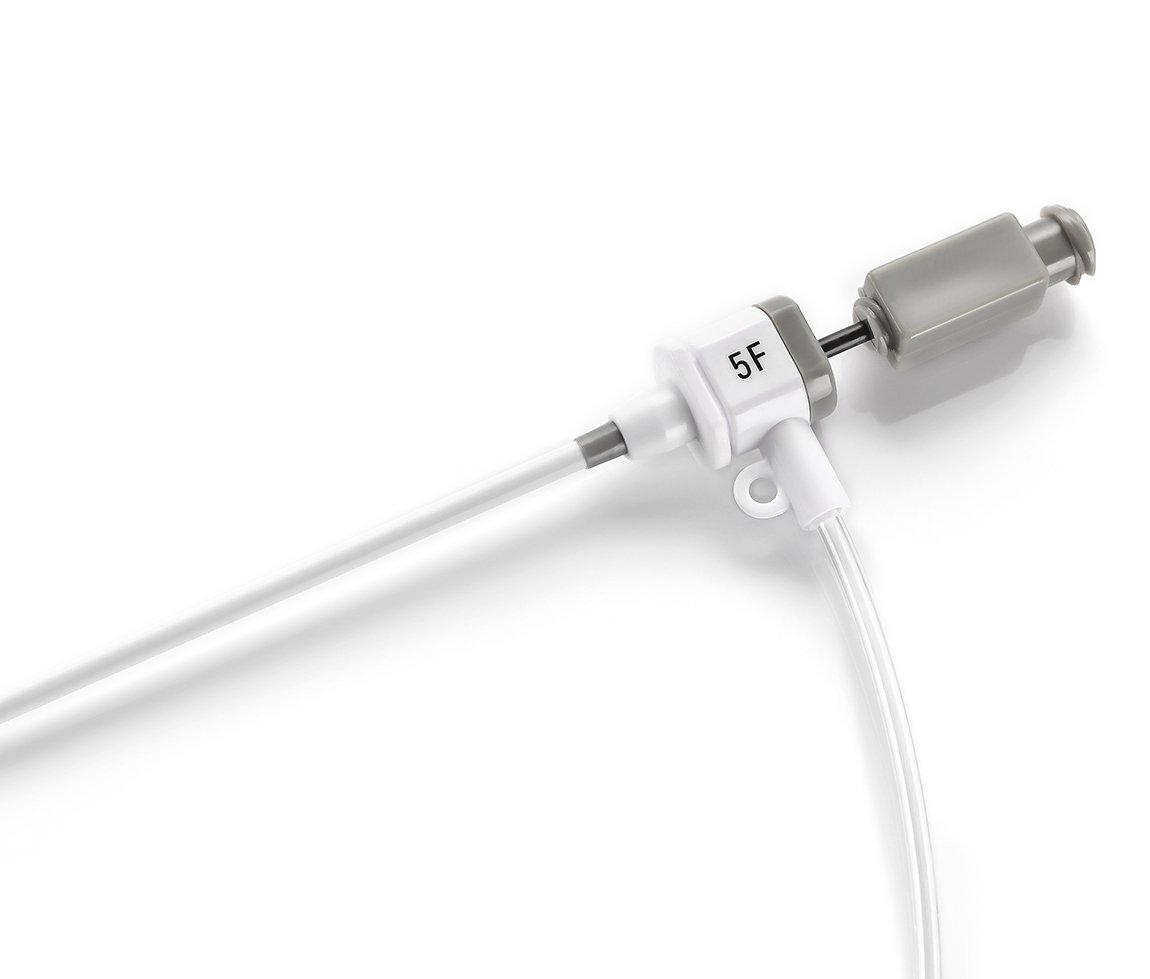

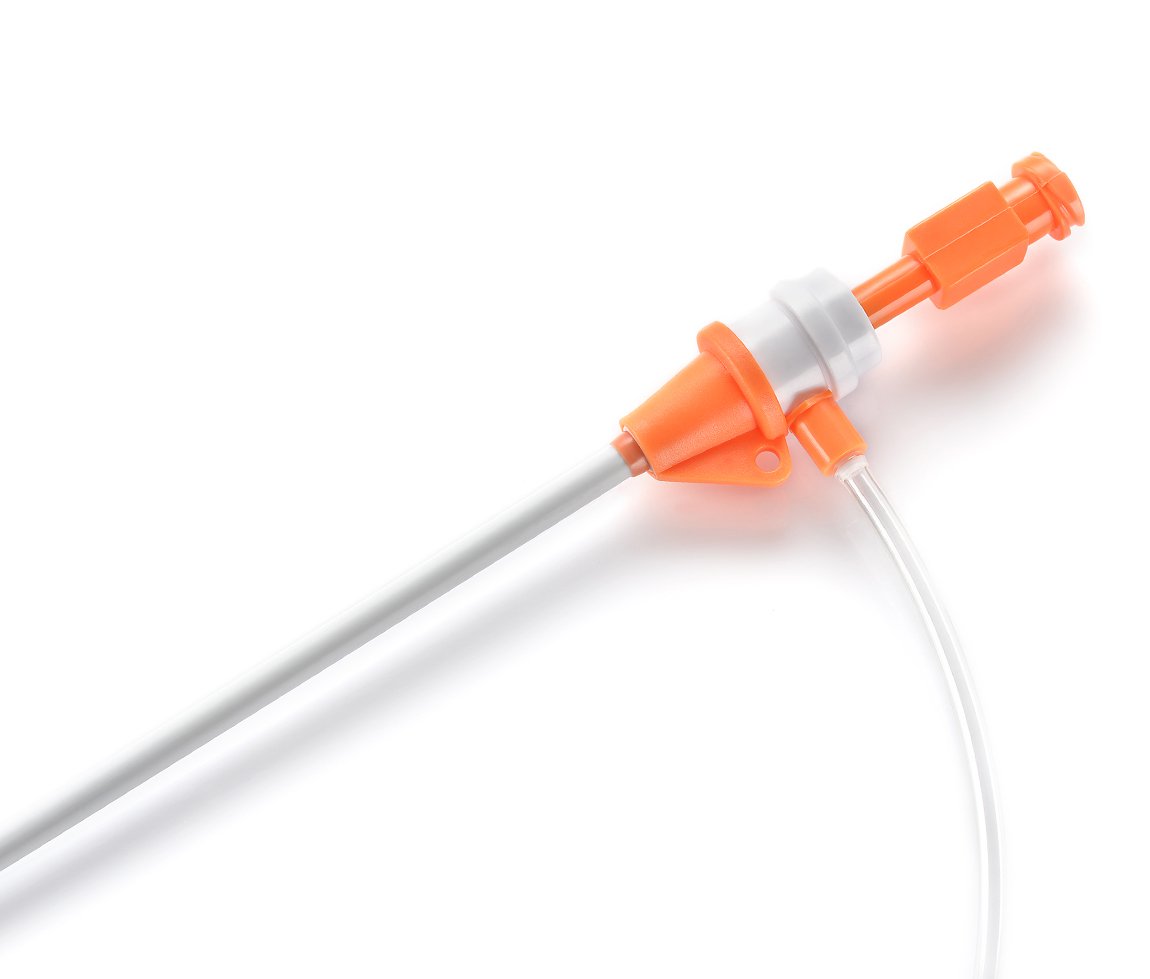

Treansradial Introducer Sheath
Dilator
Kink-Resistant Guide Wire
Syringes
Introducer Needle/I.V.Cannula
Product at a glance -
TWIST TYPE-Med | ||||
Product No. | Size(Fr.) | Length(cm) | Nitinol Guidewire | I.V.Cannula |
42.10.10000 | 4 | 7 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10002 | 5 | 7 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10005 | 6 | 7 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10008 | 7 | 7 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10012 | 8 | 7 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10001 | 4 | 9 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10003 | 5 | 11 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10006 | 6 | 11 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10009 | 7 | 11 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10004 | 5 | 16 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10007 | 6 | 16 | 0.018"*65cm Angled | 20G*3.2cm |
42.10.10010 | 7 | 16 | 0.018"*65cm Angled | 20G*3.2cm |
CLICK TYPE-Ter | ||||
Product No. | Size(Fr.) | Length(cm) | Nitinol Guidewire | I.V.Cannula |
42.10.20000 | 4 | 7 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20003 | 5 | 7 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20006 | 6 | 7 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20009 | 7 | 7 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20001 | 4 | 11 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20004 | 5 | 11 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20007 | 6 | 11 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20010 | 7 | 11 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20002 | 4 | 16 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20005 | 5 | 16 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20008 | 6 | 16 | 0.025"*45cm straight | 20G*3.2cm |
42.10.20011 | 7 | 16 | 0.025"*45cm straight | 20G*3.2cm |
CLICK TYPE-Coo | ||||
Product No. | Size(Fr.) | Length(cm) | Nitinol Guidewire | I.V.Cannula |
42.10.30000 | 4 | 7 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30003 | 5 | 7 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30006 | 6 | 7 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30009 | 7 | 7 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30001 | 4 | 11 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30004 | 5 | 11 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30007 | 6 | 11 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30010 | 7 | 11 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30002 | 4 | 16 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30005 | 5 | 16 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30008 | 6 | 16 | 0.021"*45cm straight | 20G*3.8cm |
42.10.30011 | 7 | 16 | 0.021"*45cm straight | 20G*3.8cm |

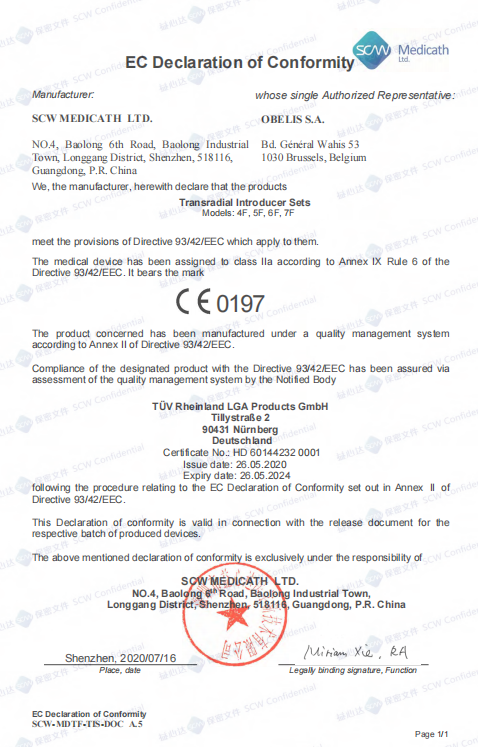

This is a CE certified product. Here is the picture for your reference:
